BDS Suspension

0.75 Inch Lift Kit Jeep Cherokee XJ 84-01 by BDS Suspension

0.75 Inch Lift Kit Jeep Cherokee XJ 84-01 by BDS Suspension

$947.70 USD
$947.70 USD
Sale Sold out
Shock Option

OVERVIEW

Raise up your 1984-2001 Jeep Cherokee XJ by installing this 3/4-inch lift kit from BDS Suspension. Specially designed for the Cherokee, this 3/4" lift kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

The lift kit includes two front 3/4" urethane coil spring spacers, rear heavy duty boomerang shackle with greaseable urethane bushings and custom-tuned NX2 Nitro or FOX Performance series shocks. Give your Cherokee XJ the extra boost with this 3/4-inch lift kit from BDS Suspension.

Features & Benefits

  • Front urethane coil spacer maintains factory ride
  • Easy, 100% Bolt-on installation
  • NX2 gas shocks for improved damping
  • Allows clearance for 30" tires

Recommended Tires & Wheels

(Trimming may be required)

  • 30 x 9.5 with 15 x 7 and 4 in. Backspace

Shock Option

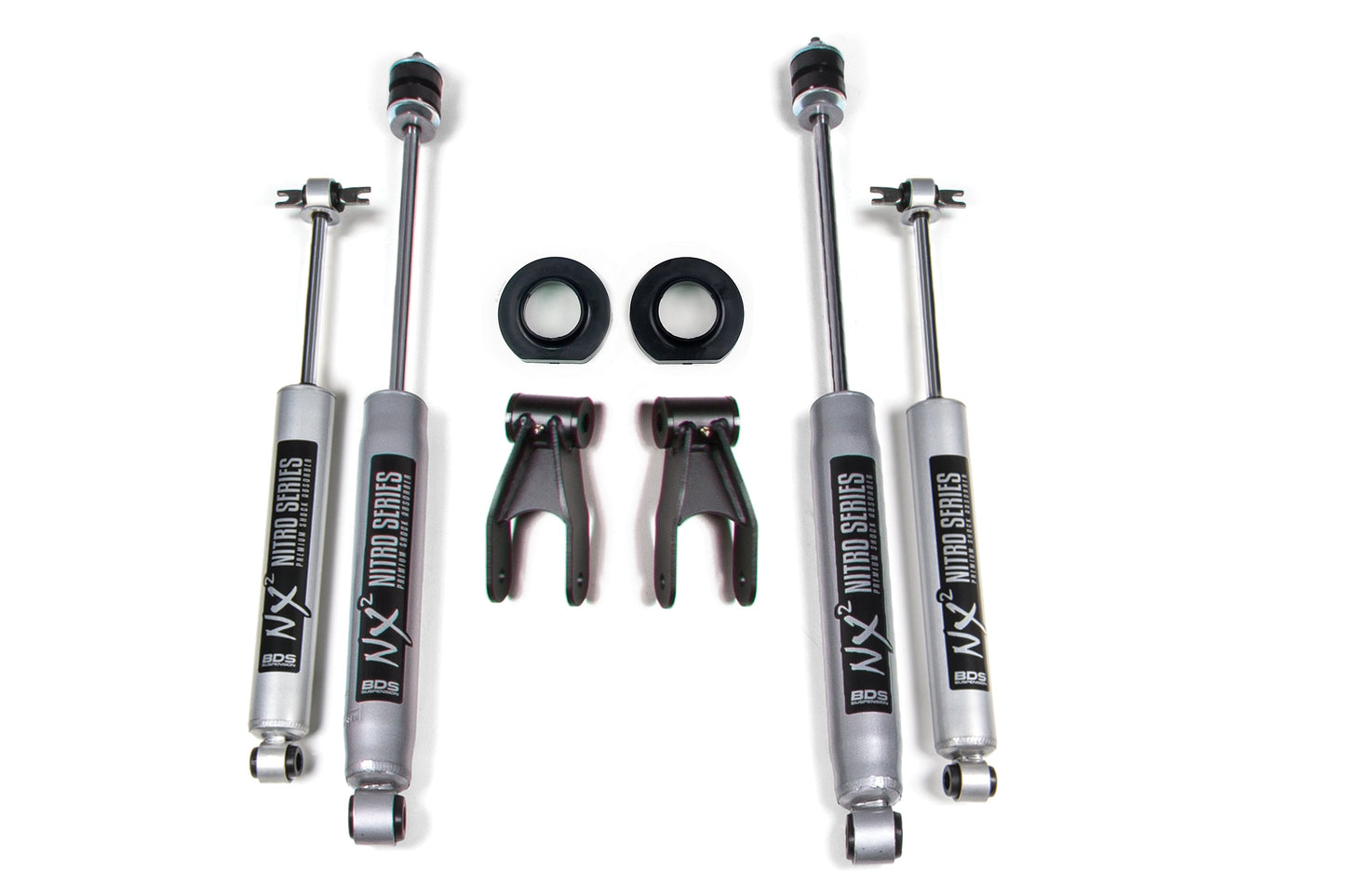

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

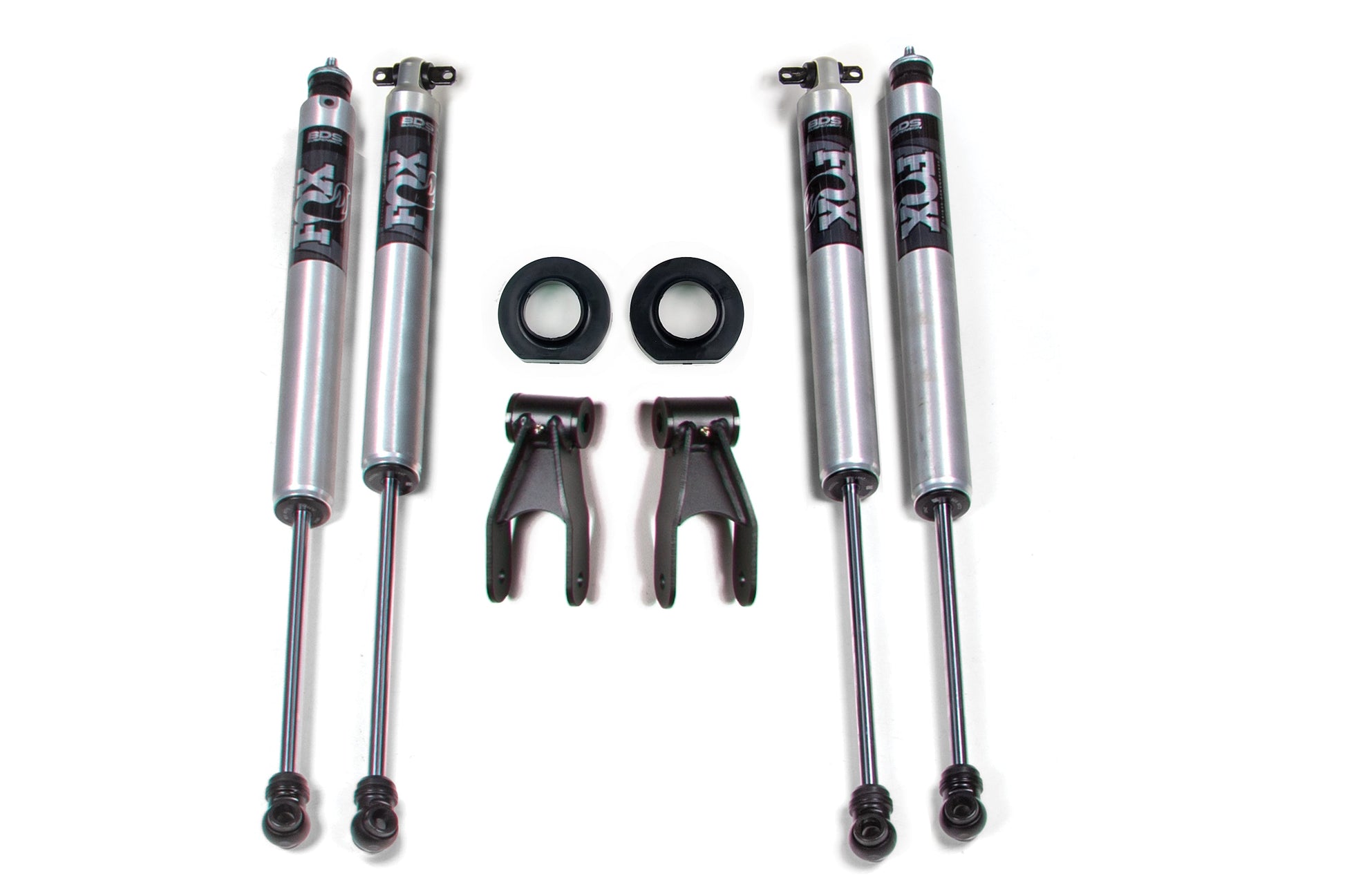

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

INSTALLATION



Installation Guides :

Download Guide 1

Download Guide 2

Est. Install Time :

4 hrs

Difficulty Level :

Moderately Easy

Tools Needed :

Torque Wrench, Jack / Jack Stands

SPECIFICATION

  • Front Lift Method : Coil Spacer
  • Front Lift Height : 0.75"
  • Rear Lift Method : Shackle
  • Rear Lift Height : 1"
  • Shocks Included : Yes
  • Lift Height : 0-1.5"

FITMENT

Year Make Model Submodel Drive Type Fuel Type
1984 Jeep Cherokee ALL ALL ALL
1985 Jeep Cherokee ALL 4WD GAS
1986 Jeep Cherokee ALL 4WD GAS
1987 Jeep Cherokee ALL 4WD GAS
1988 Jeep Cherokee ALL 4WD ALL
1989 Jeep Cherokee ALL 4WD ALL
1990 Jeep Cherokee ALL 4WD ALL
1991 Jeep Cherokee ALL 4WD ALL
1992 Jeep Cherokee ALL 4WD ALL
1993 Jeep Cherokee ALL 4WD ALL
1994 Jeep Cherokee Country 4WD ALL
1994 Jeep Cherokee SE 4WD ALL
1994 Jeep Cherokee Sport 4WD ALL
1995 Jeep Cherokee ALL 4WD ALL
1996 Jeep Cherokee ALL 4WD ALL
1997 Jeep Cherokee ALL 4WD ALL
1998 Jeep Cherokee ALL 4WD ALL
1999 Jeep Cherokee ALL 4WD ALL
2000 Jeep Cherokee ALL 4WD ALL
2001 Jeep Cherokee ALL 4WD ALL
