1 Inch Leveling Kit FOX 2.0 Coil-Over Toyota Tacoma 4WD 16-23 by BDS Suspension

OVERVIEW

Level out your 2016-2023 Toyota Tacoma truck and improve the ride with this 1-inch lift kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 32" tires.

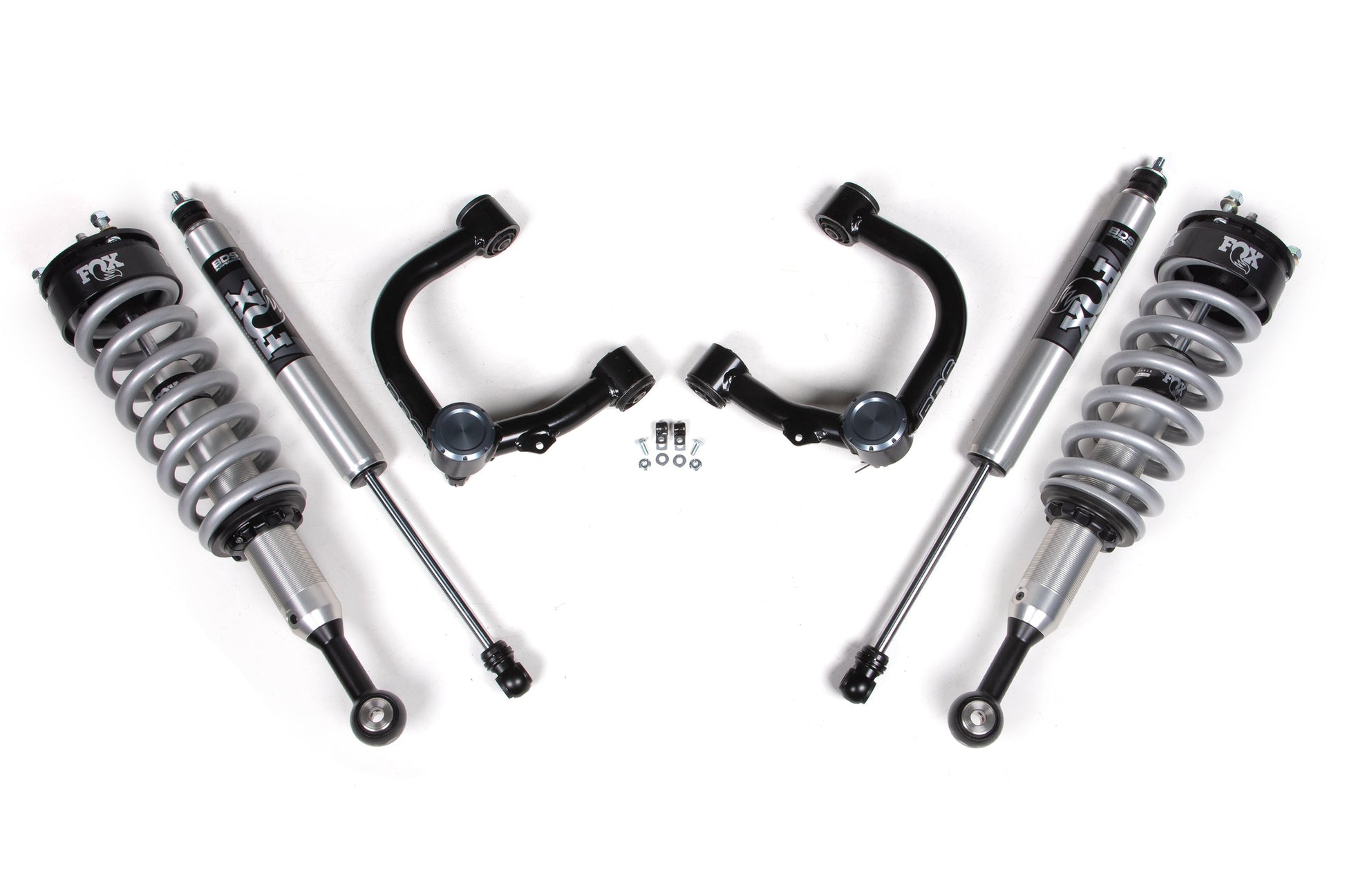

Up front the lift kit includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Coil-Over Shocks

These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat treated alloy shaft and come preloaded with springs and top-plate for easy installation.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features & Benefits

• FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series IFP rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100% Bolt on installation

Recommended Tires & Wheels

(Trimming may be required)

• 265 / 75 with and Stock in. Backspace

INSTALLATION

Installation Guides :

Download Guide 1

Est. Install Time :

3-4 hrs

Difficulty Level :

Moderate

SPECIFICATION

• Front Lift Method : Coil-Over
• Front Lift Height : 1"
• Rear Lift Method : Stock
• Rear Lift Height : 0"
• Shocks Included : Yes
• Lift Height : 0-1.5"

FITMENT

Year	Make	Model	Submodel	Drive Type	Fuel Type
2016	Toyota	Tacoma	Limited	4WD	ALL
2016	Toyota	Tacoma	SR	4WD	ALL
2016	Toyota	Tacoma	SR5	4WD	ALL
2016	Toyota	Tacoma	TRD Off-Road	4WD	ALL
2016	Toyota	Tacoma	TRD Sport	4WD	ALL
2017	Toyota	Tacoma	Limited	4WD	ALL
2017	Toyota	Tacoma	Sport	4WD	ALL
2017	Toyota	Tacoma	SR	4WD	ALL
2017	Toyota	Tacoma	SR5	4WD	ALL
2017	Toyota	Tacoma	TRD Off-Road	4WD	ALL
2017	Toyota	Tacoma	TRD Sport	4WD	ALL
2018	Toyota	Tacoma	Limited	4WD	ALL
2018	Toyota	Tacoma	Sport	4WD	ALL
2018	Toyota	Tacoma	SR	4WD	ALL
2018	Toyota	Tacoma	SR5	4WD	ALL
2018	Toyota	Tacoma	TRD Off-Road	4WD	ALL
2018	Toyota	Tacoma	TRD Sport	4WD	ALL
2019	Toyota	Tacoma	Limited	4WD	ALL
2019	Toyota	Tacoma	Sport	4WD	ALL
2019	Toyota	Tacoma	SR	4WD	ALL
2019	Toyota	Tacoma	SR5	4WD	ALL
2019	Toyota	Tacoma	TRD Off-Road	4WD	ALL
2019	Toyota	Tacoma	TRD Sport	4WD	ALL
2020	Toyota	Tacoma	Limited	4WD	ALL
2020	Toyota	Tacoma	Sport	4WD	ALL
2020	Toyota	Tacoma	SR	4WD	ALL
2020	Toyota	Tacoma	SR5	4WD	ALL
2020	Toyota	Tacoma	TRD Off-Road	4WD	ALL
2020	Toyota	Tacoma	TRD Sport	4WD	ALL
2021	Toyota	Tacoma	Limited	4WD	ALL
2021	Toyota	Tacoma	SR	4WD	ALL
2021	Toyota	Tacoma	SR5	4WD	ALL
2021	Toyota	Tacoma	TRD Off-Road	4WD	ALL
2021	Toyota	Tacoma	TRD Sport	4WD	ALL
2022	Toyota	Tacoma	Limited	4WD	ALL
2022	Toyota	Tacoma	SR	4WD	ALL
2022	Toyota	Tacoma	SR5	4WD	ALL
2022	Toyota	Tacoma	TRD Off-Road	4WD	ALL
2022	Toyota	Tacoma	TRD Sport	4WD	ALL
2023	Toyota	Tacoma	Limited	4WD	ALL
2023	Toyota	Tacoma	SR	4WD	ALL
2023	Toyota	Tacoma	SR5	4WD	ALL
2023	Toyota	Tacoma	Trail Special Edition	ALL	ALL
2023	Toyota	Tacoma	TRD Off-Road	4WD	ALL
2023	Toyota	Tacoma	TRD Sport	4WD	ALL
